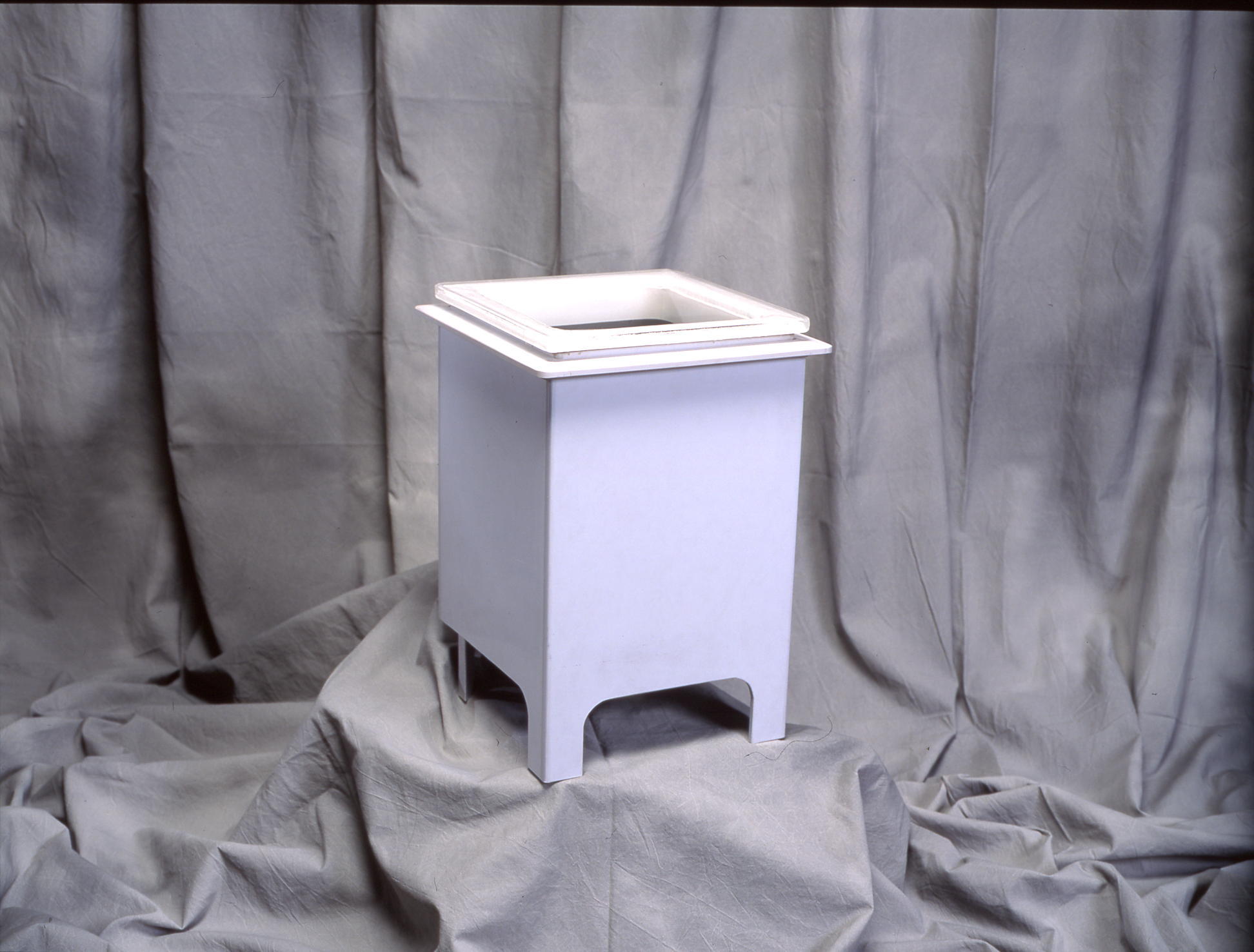

Our quartz tanks are suitable for use in processes using quartz-compatible chemistries up to 190°C. Quartz is known for its durability and non-reactivity to a variety of chemistries. We employ experienced quartz welders and machinists to create high purity, uniform tanks in a variety of standard and custom sizes, with the ability to add high-strength welded quartz inlets and probe holders.
For the most rigorous processes, we offer our patented AquaSeal technology, which protects against the leading cause of vessel failure. It incorporates a dual sealing feature by directing DI water to flow over the RTV seal area, cooling it while forming a barrier against chemical fumes.
High Operating Temperatures - Operates up to 190° and can be used with any quartz compatible chemistries.
Flexibility - Variety of standard and custom sizes available. Multiple drain configurations and a complete line of accessories allow for easy integration.
The following are general specifications that apply to Accubath Quartz heated baths. Model specific information is supplied with each bath:
Please also review our material compatibility table here
| Tank Material: | Virgin Annealed quartz, firepolished. |
| Housing Material, Standard: | Fire Retardant Polypropylene |
| Housing Material, FM 4910 Optional | PVDF |
| Overtemperature sensor 1: | Two (2) J-type thermocouples |
| Overtemperature sensor 2: | Thermostatic snap switch (opens at 210°C +/- 7°C) |
| Heater Elements | Low watt density Inconel foil |
| Insulation: | High Density Aluminum Silicate |
| Maximum operating temperature: | 190°C. |
| Operating voltage: | Model dependent |
| Limited Warranty: | One Year standard or 30 months for tanks with Aquaseal |
